| Project | Spec. | |
| Picture |   |
  |
| Input voltage |
3 phase 323-437Vac | 3 phase 323-437Vac |
| 1 phase 176-264Vac | 1 phase 176-264Vac | |
| Output voltage |
200-450Vdc | 300- 456Vdc |
| 14Vdc | ||
| Output current |
30.5A | 57.1A |
| 10A | ||
| Power | 10KW (3 phase) |
20KW(3 phase) |
| 6.6KW(1 phase) | 10KW(1 phase) | |
| Efficiency | 95% | 95% |
| Cooling | Water Cooling |
Water Cooling |
| Dimension(mm) | 386*260*110 | 466 *325*155 |
| IP level | IP67 | IP67 |
| Operating temperature |
-10℃ – +40℃ | -10℃ – +50℃ |

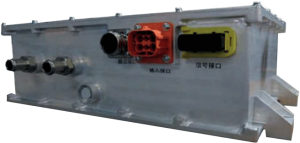

10KW & 20KW充电机
